Smoke Special Effect
Cryo curtain

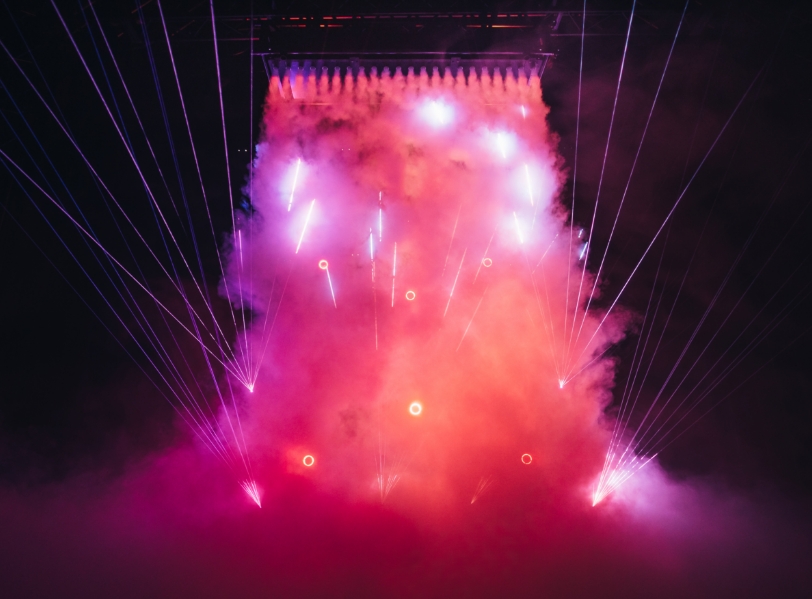

SMOKE-TECH is a smoke curtain generator meticulously designed for use on stage. Using liquid CO₂, it chills the fog produced by an internal smoke generator to provide a thick, falling curtain of white smoke. The system comes equipped with integrated DMX so technicians can independently control the smoke output, fans and CO₂ cooling.
FEATURES
OPTIMAL FLOW
Nozzles are designed using computational fluid dynamics to achieve a smooth, uninterrupted flow. Smoke is evenly distributed, providing a dense and immersive effect that brings drama to any production.
VERSATILE

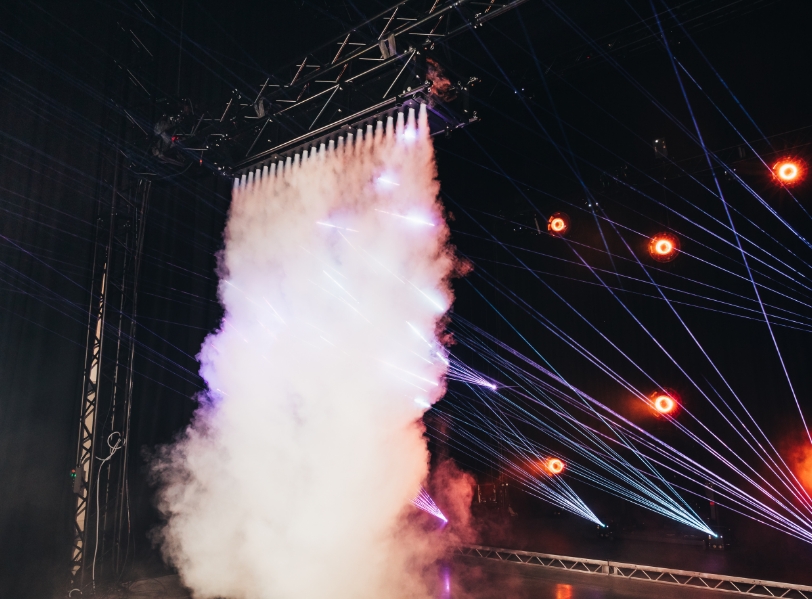

The system offers incredible versatility, capable of creating two distinct types of atmospheric effects. It can be suspended from a height to create a dense falling smoke curtain. Alternatively, it can be configured to generate mystical ground-level fog.
MODULAR
The system is designed to be expandable. Multiple units can be connected together for a seamless effect. Whether you need a single unit or multiple to cover a larger area, the Cryo Curtain provides an impressive smoke display.
PRE-RIGGED

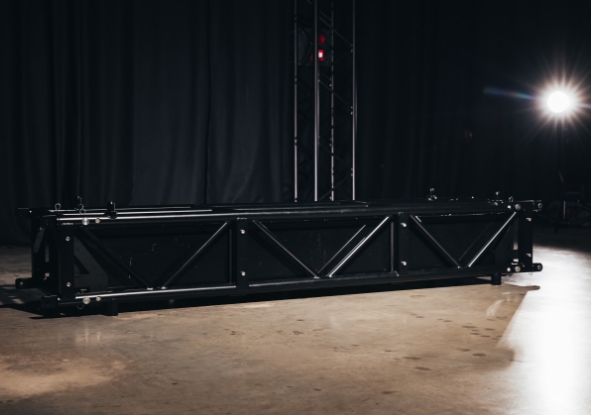

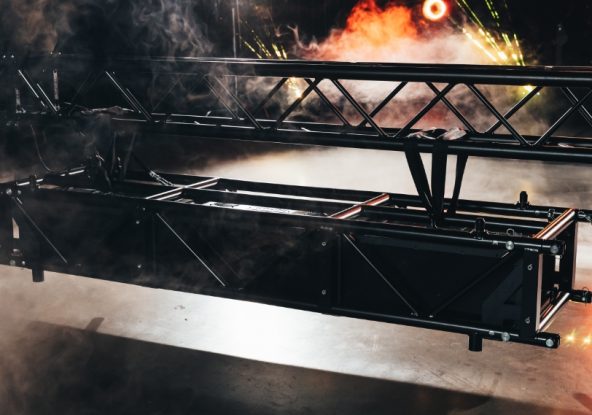

Rigging is simplified with our truss-mounted design. Each system is supplied pre-rigged in light weight, Quick-Lock truss. Perfect for a speedy set-up.
MEDIA
SPECIFICATION
SIZE
2400L (rigging pin centres) X 634W X 456H
CONSTRUCTION
Composite chassis with aluminium & stainless steel frame
CONTROL

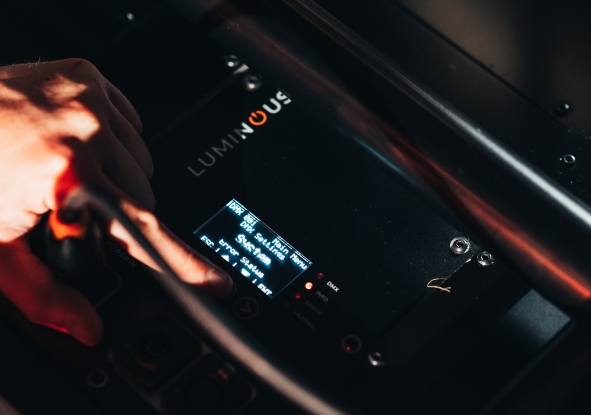

DMX 512 Input & THRU
CH1: FOG (0-255)
CH2: CO₂ (on/off)
CH3: Fans (on/off)
CONNECTIONS
True1 power
5 Pin XLR In & Out
ISO A High Pressure CO₂ connector
ELECTRICAL
230VAC, 50Hz, 3.15Kw
FLUID USAGE
Approx. 70ml/min
CO₂ CONSUMPTION
3kg/min
DATA SHEET DOWNLOAD
APPLICATIONS
SMOKE-TECH is an incredible addition to any production. The curtain can be lit with conventional stage lighting and can also be used with projection and laser lighting. The combination of lighting and smoke can achieve a huge range of effects and screening surfaces to enhance productions.
